VFD vs SCR: Which Drive Technology Wins for Drilling?
Drilling engineers and equipment managers face a tough choice when selecting motor control systems for their operations. Variable frequency drive drilling and SCR drive technology drilling each offer distinct advantages, but which one delivers better performance for your specific drilling applications?
This comprehensive drilling drive comparison is designed for drilling contractors, equipment engineers, and operations managers who need to make informed decisions about electric drilling drives. We’ll cut through the technical jargon to help you understand which technology fits your needs and budget.
We’ll examine how VFD drilling applications stack up against SCR systems in real-world drilling scenarios, including performance differences that impact your bottom line. You’ll also get a detailed cost analysis comparing upfront investments with long-term returns, plus insights into how each oil drilling drive system handles the harsh conditions typical in drilling environments. Finally, we’ll explore which drilling equipment motor control technology works best for different types of drilling operations, from shallow wells to deep offshore projects.

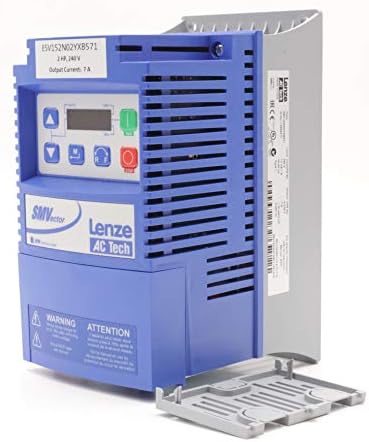

Understanding VFD Technology for Drilling Operations
How Variable Frequency Drives Control Motor Speed and Torque
Variable frequency drives in drilling operations work by converting standard three-phase AC power into a precisely controlled output that can adjust both frequency and voltage. This conversion process happens through a sophisticated three-stage system: rectification, DC link filtering, and inversion. The drive first converts incoming AC power to DC, then smooths it through capacitors and inductors, before inverting it back to AC with the exact frequency and voltage needed for optimal motor performance.
The real magic happens in the torque control capabilities. VFD drilling applications benefit from the ability to maintain constant torque across a wide speed range, which is essential when dealing with varying formation hardness and drilling conditions. Unlike fixed-speed systems, these drives can deliver maximum torque at zero speed, providing exceptional starting power for heavy drill strings. The drives accomplish this through vector control algorithms that independently manage motor flux and torque components.
Modern drilling motor control systems using VFDs employ sophisticated feedback loops that monitor motor parameters in real-time. These systems track rotor position, current draw, and load conditions to make instantaneous adjustments. The result is precise control over drilling operations that can respond to changing conditions faster than human operators could react.
Energy Efficiency Benefits in Drilling Applications
Energy savings represent one of the most compelling advantages of VFD technology in drilling operations. Traditional drilling systems often operate at constant speeds regardless of actual drilling requirements, wasting substantial energy during lighter load conditions. Variable frequency drives eliminate this inefficiency by matching motor output precisely to drilling demands.
Oil drilling drive systems equipped with VFDs typically achieve 20-30% energy reduction compared to conventional fixed-speed alternatives. This efficiency comes from the drive’s ability to reduce motor speed during periods of reduced drilling resistance, such as when penetrating softer formations. The relationship between motor speed and power consumption follows a cubic law – reducing speed by just 20% can cut energy consumption by nearly 50%.
Heat generation decreases significantly with VFD implementation, reducing cooling requirements and extending equipment life. The precise speed control eliminates the mechanical stress associated with on/off cycling and sudden speed changes common in SCR systems. This gentler operation translates into lower maintenance costs and improved overall system reliability.
Precise Speed Control for Different Drilling Conditions
Drilling operations encounter dramatically different conditions as they progress through various geological formations. Soft sedimentary layers require different speed and torque characteristics compared to hard granite or limestone formations. VFDs excel in these scenarios by providing stepless speed adjustment that can be programmed or manually controlled to match specific drilling requirements.
The speed control precision offered by modern drives reaches tolerances of ±0.1% of set speed, even under varying load conditions. This accuracy becomes critical when drilling through sensitive formations where excessive speed could cause washouts or insufficient speed might lead to drill bit loading. Operators can program speed ramps and acceleration curves that protect both the drill string and formation integrity.
Advanced VFD systems incorporate load-sensing capabilities that automatically adjust speed based on real-time drilling conditions. When the system detects increased resistance, it can reduce speed while maintaining torque, preventing drill bit damage and ensuring consistent penetration rates. Conversely, when drilling through softer materials, the system can increase speed to maximize drilling efficiency.
Integration with Modern Drilling Control Systems
Contemporary drilling equipment motor control relies heavily on integrated systems where VFDs communicate seamlessly with other drilling components. These drives connect to supervisory control and data acquisition (SCADA) systems through standard industrial protocols like Modbus, Ethernet/IP, and Profinet, enabling real-time monitoring and control from central locations.
The integration extends beyond basic speed control to include predictive maintenance capabilities. VFDs continuously monitor motor parameters such as vibration patterns, temperature variations, and power consumption trends. This data feeds into drilling equipment management systems that can predict component failures before they occur, scheduling maintenance during planned downtime rather than during costly emergency shutdowns.
Modern VFD drilling systems also interface with automated pipe handling equipment, mud circulation systems, and safety shutdown circuits. This comprehensive integration ensures coordinated operation where speed adjustments automatically trigger corresponding changes in other drilling parameters, maintaining optimal drilling conditions without constant operator intervention.
SCR Drive Technology Fundamentals in Drilling
Silicon Controlled Rectifier Operating Principles
Silicon Controlled Rectifier (SCR) drive technology operates on a fundamentally different principle than variable frequency drives, making SCR drilling applications particularly suited for heavy-duty operations. At its core, an SCR system controls motor speed through phase angle control, which regulates the amount of voltage delivered to the motor by controlling when the SCR switches on during each AC cycle.
The SCR device acts as an electronic switch that only allows current to flow in one direction once triggered by a gate signal. In drilling motor control systems, multiple SCRs work together in pairs to handle the three-phase AC power supply. When the gate receives a trigger pulse, the SCR conducts electricity until the current naturally drops to zero at the end of each half-cycle. By adjusting the timing of these trigger pulses, operators can precisely control the average voltage and current delivered to the drilling motor.
This phase-controlled rectification creates a chopped sine wave output that varies motor speed while maintaining high torque characteristics. Unlike VFD systems that convert AC to DC and back to AC, SCR technology works directly with the incoming AC power, making it inherently more robust and less susceptible to harmonic distortions that can affect sensitive electronic components.
The control circuitry monitors various parameters including motor current, speed feedback, and load conditions to adjust the firing angle of the SCRs automatically. This real-time adjustment ensures optimal motor performance across different drilling conditions while protecting the system from overloads and electrical faults.
High Torque Output at Low Speeds
SCR drive technology excels in drilling applications primarily because of its exceptional ability to deliver maximum torque at very low speeds. This characteristic proves invaluable during critical drilling operations such as pipe connections, slow rotary drilling through challenging formations, and precise positioning maneuvers.
The torque-speed relationship in SCR-controlled motors remains relatively flat across the operating range, meaning drilling crews can access nearly full motor torque even at speeds as low as 10-15% of rated RPM. This capability becomes essential when drilling through hard rock formations or when the drill bit encounters unexpected obstacles that require sustained high-torque output at reduced speeds.
During makeup and breakout operations, SCR drilling drives can provide the necessary torque multiplication without requiring additional mechanical gearing. The system automatically adjusts to load changes, delivering higher current and torque when resistance increases while maintaining precise speed control. This responsiveness prevents motor stalling and reduces mechanical stress on drilling equipment.
The high starting torque capability of SCR systems eliminates the need for soft-start devices or complex acceleration ramps. Drilling motors can immediately develop substantial torque from standstill, which proves particularly beneficial during emergency stops and restarts or when overcoming static friction in stuck pipe situations.
Robust Performance in Harsh Drilling Environments
Oil drilling drive systems face some of the most demanding environmental conditions in industrial applications, and SCR technology demonstrates remarkable resilience in these challenging settings. The relatively simple electronic architecture of SCR drives contains fewer sensitive components compared to complex VFD systems, resulting in superior reliability when exposed to extreme temperatures, vibration, dust, and electromagnetic interference.
The solid-state construction of SCR devices can withstand temperature fluctuations from sub-zero conditions in Arctic drilling to extreme heat in desert operations. Unlike VFDs that require sophisticated cooling systems and climate-controlled enclosures, SCR drives operate reliably with minimal environmental protection. The absence of complex microprocessors and digital control circuits reduces vulnerability to electromagnetic interference from nearby radio equipment, welding operations, and other electrical machinery common on drilling rigs.
Vibration resistance represents another critical advantage in drilling applications. The robust construction and minimal number of electronic components in SCR systems handle the constant vibration and shock loads transmitted through the drilling structure without degradation in performance or premature component failure.
Maintenance requirements remain minimal due to the simple design and proven technology. Field technicians can quickly diagnose and repair SCR drives using basic electrical testing equipment, reducing downtime and eliminating the need for specialized diagnostic tools or factory-trained service personnel. This practical advantage becomes particularly valuable during remote drilling operations where technical support may be limited.
The electromagnetic compatibility of SCR drives also supports reliable operation in electrically noisy environments without requiring extensive shielding or filtering systems that add complexity and potential failure points to the overall drilling motor control system.
Performance Comparison in Critical Drilling Scenarios
Starting Torque Requirements for Heavy Drilling Loads
When drilling operations demand maximum power from the get-go, the VFD vs SCR drilling debate becomes critical. SCR drive technology drilling systems shine in high starting torque scenarios, delivering up to 200% of rated torque at zero speed. This capability proves essential for breaking through challenging geological formations or when drilling equipment encounters unexpected resistance.
Variable frequency drive drilling systems approach starting torque differently. While VFDs typically provide 150% starting torque, they compensate through precise control and gradual torque buildup. This characteristic works well for controlled drilling starts but may struggle with heavy-duty applications requiring immediate maximum torque.
Real-world drilling scenarios reveal distinct advantages for each technology:
- Heavy mud circulation: SCR drives excel with their robust starting characteristics
- Precision drilling operations: VFDs provide smoother, more controlled starts
- Deep hole drilling: SCR systems handle high breakaway torque requirements better
- Automated drilling sequences: VFDs offer superior integration with modern control systems
Speed Range Capabilities and Operational Flexibility
Drilling motor control systems demand versatility across varying operational conditions. VFDs dominate this category with speed ranges typically spanning 10:1 to 100:1 ratios, while SCR systems generally operate within 3:1 to 10:1 ranges.
VFD drilling applications benefit from exceptional low-speed precision. These systems maintain full torque down to 1-2% of rated speed, enabling precise positioning and controlled drilling advancement. SCR drives, conversely, experience torque reduction at lower speeds, limiting their effectiveness in precision applications.
| Performance Metric | VFD Systems | SCR Systems |
|---|---|---|
| Speed Range | 10:1 to 100:1 | 3:1 to 10:1 |
| Low-Speed Torque | 100% at 1% speed | 60-80% at 10% speed |
| Speed Regulation | ±0.1% | ±1-2% |
| Dynamic Response | Excellent | Good |
The operational flexibility extends beyond basic speed control. Electric drilling drives using VFD technology integrate seamlessly with automated drilling systems, providing real-time speed adjustments based on formation feedback. SCR systems offer robust performance but with limited adaptability to changing conditions.
Response Time to Load Changes During Drilling
Drilling operations encounter constant load variations as formations change, requiring drive systems that respond quickly to maintain optimal performance. Oil drilling drive systems face particular challenges with sudden load increases during hard formation penetration or equipment binding.
VFDs demonstrate superior response characteristics, typically reacting to load changes within 50-100 milliseconds. This rapid response helps maintain consistent drilling parameters and prevents equipment damage from sudden torque spikes. The advanced control algorithms in modern VFDs continuously monitor motor conditions and adjust output accordingly.
SCR drive systems exhibit slower response times, typically 200-500 milliseconds for significant load changes. While this delay rarely affects overall drilling performance, it can impact precision operations or cause momentary speed deviations during critical drilling phases.
Power Factor and Harmonic Distortion Impact
Drilling equipment motor control systems significantly impact electrical infrastructure through power quality considerations. SCR drives traditionally operate with power factors between 0.7-0.9, depending on load conditions and firing angle settings. The inherent switching characteristics of SCR systems generate harmonic distortion levels of 15-25% Total Harmonic Distortion (THD).
VFD systems present more complex power quality scenarios. While modern VFD drilling applications incorporate advanced input filtering and active front-end designs, they still typically operate with power factors between 0.85-0.95. Harmonic distortion varies significantly based on VFD design, ranging from 3-8% THD for premium units with active filtering to 25-35% for basic models.
The electrical infrastructure impact becomes crucial in remote drilling locations where power generation capacity is limited. SCR systems’ simpler electrical characteristics often prove more compatible with diesel generators common in drilling operations, while VFDs may require additional power conditioning equipment to ensure stable operation.
Power quality considerations also affect equipment lifecycle costs. Higher harmonic content accelerates transformer aging, increases cable heating, and can interfere with sensitive instrumentation. Drilling drive comparison studies consistently show that total electrical system costs must include power quality mitigation measures when evaluating drive technology options.
Cost Analysis and Return on Investment
Initial Equipment and Installation Costs
VFD vs SCR drilling operations start with significantly different upfront investments. Variable frequency drives typically carry higher initial costs, ranging from $15,000 to $75,000 for medium-sized drilling applications, while SCR drive technology drilling systems usually fall between $8,000 to $45,000 for comparable power ratings.
The installation complexity also varies dramatically between these drilling motor control systems. VFD installations require specialized electrical infrastructure, including harmonic filters, line reactors, and often dedicated cooling systems. Installation costs can add 20-30% to the base equipment price due to these requirements. SCR systems, being simpler in design, typically involve straightforward installation with minimal additional components, keeping installation costs around 10-15% of equipment cost.
Electric drilling drives also differ in their supporting infrastructure needs. VFDs demand more sophisticated control panels, advanced programming capabilities, and often require skilled technicians for proper setup. SCR systems work with basic control circuits and can be configured by standard electrical personnel, reducing both installation time and specialist labor costs.
Long-term Energy Consumption Savings
VFD drilling applications deliver substantial energy savings over their operational lifetime. Variable frequency drives can reduce energy consumption by 20-50% compared to SCR systems, particularly in applications with varying load requirements. This efficiency advantage stems from their ability to precisely match motor speed to drilling demands, eliminating the energy waste common in fixed-speed operations.
Drilling motor efficiency improvements with VFDs become especially pronounced during partial load conditions, which represent 60-80% of typical drilling operations. A 500-horsepower drilling motor running at 75% capacity can save $15,000-25,000 annually in electricity costs when controlled by a VFD versus an SCR system.
Oil drilling drive systems using VFDs also benefit from power factor correction and reduced reactive power consumption. These improvements can lower utility demand charges by 10-20%, creating additional savings beyond direct energy consumption reductions. SCR systems, while robust, consume full power regardless of actual drilling requirements, leading to higher operational costs over time.
Maintenance Requirements and Downtime Costs
Drilling drive comparison reveals striking differences in maintenance needs. VFDs contain numerous electronic components, including capacitors, cooling fans, and circuit boards that require regular inspection and eventual replacement. Typical VFD maintenance costs run $2,000-5,000 annually for medium-sized drilling operations, with major component replacements needed every 5-7 years.
SCR systems demonstrate superior simplicity in maintenance requirements. Their robust construction with fewer moving parts and minimal electronic components results in maintenance costs around $800-2,000 annually. The thyristor-based design proves remarkably durable in harsh drilling environments, often operating for decades with basic preventive care.
Downtime costs represent a critical factor in drilling equipment motor control selection. VFD failures can shut down operations for 24-72 hours while waiting for specialized components or technicians. At $50,000-100,000 per day in lost drilling revenue, these outages quickly offset energy savings. SCR system failures typically resolve within hours using standard electrical components available at most drilling sites.
Equipment Lifespan and Replacement Considerations
Drilling motor control systems show distinct longevity patterns based on their underlying technology. SCR drives commonly operate for 15-25 years with proper maintenance, while VFDs typically require replacement or major overhauls after 10-15 years due to electronic component degradation and technological obsolescence.
Environmental factors significantly impact equipment lifespan in drilling applications. VFDs struggle with temperature extremes, dust, and vibration common on drilling rigs, often requiring protective enclosures and climate control that add to operational costs. SCR systems tolerate these conditions better, maintaining performance in environments that would compromise VFD electronics.
Replacement planning differs substantially between technologies. VFD replacements offer opportunities to upgrade to newer, more efficient models, but compatibility issues may require additional system modifications. SCR replacements typically involve direct substitution with minimal system changes, reducing replacement complexity and costs while extending the useful life of supporting infrastructure.
Reliability and Durability in Drilling Environments
Performance Under Extreme Temperature Conditions
Drilling operations expose drive systems to brutal temperature swings that can make or break equipment performance. VFD vs SCR drilling applications face vastly different thermal challenges depending on the environment and operational demands.
SCR drive technology drilling systems typically handle extreme heat better due to their simpler design and fewer temperature-sensitive components. The thyristor-based architecture of SCR drives operates reliably in temperatures ranging from -40°F to 185°F (-40°C to 85°C), making them ideal for desert drilling operations or deep well applications where ambient temperatures soar. Their robust construction means fewer electronic components that could fail when the mercury rises.
Variable frequency drive drilling systems face more complex thermal management challenges. Modern VFDs incorporate sophisticated cooling systems and temperature monitoring, but their intricate electronics require more careful thermal protection. Most drilling-grade VFDs operate effectively between -10°F to 140°F (-23°C to 60°C), though premium models extend these ranges significantly.
Cold weather drilling presents different challenges entirely. SCR drives maintain consistent performance in arctic conditions because their simpler circuitry doesn’t rely on complex microprocessors that can become sluggish in extreme cold. VFDs require specialized cold-weather packages including heaters and insulation to prevent condensation and ensure proper startup in sub-zero conditions.
The thermal cycling that occurs during drilling operations – from startup heating to operational temperatures and back to ambient – stresses both technologies differently. SCR systems handle these cycles with minimal degradation, while VFDs require more sophisticated thermal management strategies to maintain long-term reliability.
Resistance to Vibration and Shock Loads
Drilling environments subject motor control systems to constant vibration, sudden shock loads, and mechanical stress that would destroy standard industrial drives. The mechanical robustness of drilling drive comparison reveals significant differences between technologies.
SCR drives excel in high-vibration environments due to their simple, solid-state construction. With fewer moving parts and robust thyristor components mounted on heavy-duty heat sinks, these systems absorb drilling vibrations without performance degradation. The absence of complex circuit boards with delicate surface-mount components gives SCR technology a clear advantage in shock resistance.
Oil drilling drive systems using SCR technology regularly operate on offshore rigs where constant motion, wind loads, and equipment vibration create challenging conditions. The thyristor modules used in SCR drives are inherently more robust than the complex electronic assemblies found in VFDs.
Variable frequency drives require more careful mounting and isolation to survive drilling environments. Modern drilling equipment motor control VFDs incorporate shock-absorbing enclosures, vibration-dampening mounts, and ruggedized circuit boards designed specifically for harsh industrial applications. While these measures significantly improve VFD durability, they add complexity and cost to the installation.
The frequency of mechanical failures differs notably between technologies. SCR drives typically experience fewer vibration-related failures because their simpler design has fewer failure points. VFDs may require more frequent inspection of connections, circuit boards, and cooling fans in high-vibration applications.
Protection Against Dust and Moisture Ingress
Drilling sites generate enormous amounts of dust, mud, and moisture that can penetrate equipment enclosures and cause catastrophic failures. Electric drilling drives must maintain reliable operation despite these environmental challenges.
Both VFD drilling applications and SCR systems rely on NEMA-rated enclosures for environmental protection, but their internal vulnerability to contamination differs significantly. SCR drives benefit from simpler internal layouts with fewer air gaps and crevices where dust can accumulate. Their robust thyristor modules tolerate some dust accumulation without immediate performance impact.
VFDs require more stringent environmental protection due to their complex electronics and cooling requirements. The cooling fans necessary for VFD operation can draw contaminated air into the enclosure, requiring sophisticated filtration systems. Many drilling-grade VFDs use closed-loop cooling or sealed enclosures to prevent contamination.
Moisture presents particular challenges for drilling motor control systems. Condensation from temperature changes can cause short circuits and corrosion in both technologies. SCR drives typically show better moisture tolerance because their simpler circuitry has fewer sensitive components. The high-voltage nature of SCR circuits also means they’re less susceptible to the low-level leakage currents that moisture can create.
Maintenance accessibility becomes critical in contaminated environments. SCR systems often allow for easier cleaning and inspection because their simpler internal layout provides better access to key components. VFDs may require complete enclosure sealing and specialized maintenance procedures to prevent contamination during service.
The IP (Ingress Protection) ratings for drilling applications typically require IP54 or higher protection levels. Both technologies can achieve these ratings, but SCR systems often maintain their protection levels longer due to fewer penetrations for cooling air and simpler sealing requirements.
Application-Specific Advantages for Different Drilling Types
Rotary Drilling Rig Performance Benefits
Rotary drilling rigs demand consistent torque delivery across varying speeds, making the choice between VFD vs SCR drilling systems crucial for operational success. Variable frequency drive drilling systems excel in rotary applications due to their precise speed control and smooth torque characteristics. When drilling through different geological formations, VFDs automatically adjust motor frequency to maintain optimal rotation speed, preventing stick-slip oscillations that can damage drill bits and reduce drilling efficiency.
SCR drive technology drilling systems offer distinct advantages in rotary operations requiring high starting torque. The thyristor-controlled rectifiers provide excellent low-speed torque characteristics, essential when breaking through hard formations or when the drill string encounters resistance. Many drilling contractors prefer SCR systems for their proven reliability in demanding rotary applications where immediate torque response matters more than precise speed regulation.
Drilling motor control systems performance varies significantly between technologies:
| Feature | VFD Systems | SCR Systems |
|---|---|---|
| Speed Range | 1:100 or higher | 1:20 typical |
| Torque Ripple | ＜3% | 5-15% |
| Power Factor | 0.95+ | 0.7-0.85 |
| Maintenance | Moderate | Low |
Directional Drilling Precision Requirements
Directional drilling operations place extreme demands on drilling drive comparison parameters, particularly regarding precise control and responsiveness. VFD drilling applications shine in directional work because operators need exact control over drilling parameters to maintain desired trajectory. The smooth speed control prevents sudden torque spikes that could deflect the drill bit from its intended path.
Modern directional drilling requires constant micro-adjustments to weight on bit, rotational speed, and torque delivery. VFDs provide superior dynamic response, allowing real-time adjustments based on downhole conditions and steering requirements. The regenerative capabilities of VFDs also prove valuable when reducing drilling speed rapidly to navigate complex geological features.
SCR systems, while less precise, offer exceptional reliability in extended directional drilling campaigns. The robust construction and fewer electronic components mean reduced failure rates during long horizontal sections where consistent operation matters more than fine control adjustments.
Deep Well Drilling Power Demands
Deep well drilling pushes electric drilling drives to their operational limits, demanding sustained high power output over extended periods. VFD technology excels in deep drilling applications through superior power factor correction and harmonic reduction. These systems maintain efficiency even at varying loads, crucial when drilling depths exceed 15,000 feet where power transmission losses become significant.
Oil drilling drive systems face unique challenges in deep wells:
- Extended operating cycles (24-48 hours continuous)
- Varying load conditions as formations change
- Heat dissipation in enclosed drilling environments
- Power quality maintenance over long cable runs
SCR drives demonstrate exceptional durability in deep well applications. The simpler control circuits and robust power electronics handle the thermal stress of continuous operation better than complex VFD systems. Many offshore deep drilling operations rely on SCR technology for primary drawworks and rotary table drives where reliability trumps efficiency concerns.
Offshore Drilling Environmental Challenges
Offshore drilling environments create harsh conditions that test drilling equipment motor control systems beyond normal limits. Salt spray, humidity, temperature variations, and space constraints all influence technology selection. VFD systems require careful environmental protection, with specialized enclosures and cooling systems adding complexity to offshore installations.
Drilling motor efficiency becomes critical offshore where power generation costs are high and space is limited. VFDs typically deliver 15-20% better efficiency than SCR systems, translating to significant fuel savings and reduced generator requirements on drilling platforms.
Marine drilling platforms benefit from VFD regenerative capabilities during pipe handling operations. When lowering heavy drill strings, VFDs can return power to the platform electrical system, reducing overall power consumption.
SCR systems prove their worth in offshore applications through simplified maintenance requirements. The reduced component count and proven reliability record make them attractive for remote drilling operations where technical support is limited. Many platform operators choose SCR technology for critical systems requiring maximum uptime.
Weather-resistant designs for both technologies have evolved significantly, with modern systems featuring improved sealing and corrosion protection specifically engineered for marine drilling environments.
References and Resources
Technical Standards and Documentation
The American Petroleum Institute (API) publishes several key standards that govern VFD and SCR drive technology drilling applications. API Standard 7K covers drilling and well servicing equipment specifications, including motor control requirements for both variable frequency drive drilling systems and SCR drive technology drilling implementations. IEEE Standard 519 provides guidelines for harmonic control in electrical power systems, which directly impacts the performance of drilling motor control systems.
The International Electrotechnical Commission (IEC) 61800 series covers adjustable speed electrical power drive systems, offering comprehensive guidance for oil drilling drive systems selection and implementation. NEMA MG 1 standards define motor performance characteristics that influence both VFD drilling applications and SCR-based motor control systems.
Industry Research and White Papers
Major drive manufacturers including ABB, Siemens, and Schneider Electric have published extensive research comparing VFD vs SCR drilling performance metrics. These studies examine drilling motor efficiency across various operating conditions and provide valuable insights into electric drilling drives optimization.
The Society of Petroleum Engineers (SPE) database contains numerous papers analyzing drilling drive comparison studies, with particular focus on deepwater and unconventional drilling applications. Recent publications examine the total cost of ownership for different drilling equipment motor control configurations.
Professional Organizations and Training Resources
The National Association of Drilling Contractors (NADC) offers certification programs covering modern drilling motor control systems. Their curriculum includes hands-on training with both VFD and SCR technologies, helping operators understand the practical differences between these drive technologies.
The Drilling Engineering Association provides continuing education courses specifically focused on electric drilling drives selection and maintenance. Their technical committees regularly publish best practices for variable frequency drive drilling implementations and SCR drive technology drilling applications.
Manufacturer Technical Resources
Leading drive manufacturers maintain comprehensive technical libraries with application notes, selection guides, and case studies specific to drilling operations. These resources include detailed performance data, installation guidelines, and troubleshooting procedures for both VFD drilling applications and SCR-based systems.
Conclusion
Both VFD and SCR drive technologies offer unique strengths for drilling operations, but your choice comes down to what matters most for your specific project. VFDs deliver superior energy efficiency and precise speed control, making them ideal for variable-load drilling scenarios where you need flexibility and lower operating costs. SCR drives, on the other hand, excel in heavy-duty applications where raw power and proven reliability are non-negotiable, especially in harsh drilling environments where downtime can cost thousands per hour.
The smart move isn’t picking a winner in this technology battle – it’s matching the right drive to your drilling requirements. Consider your typical load patterns, environmental conditions, and long-term operational goals before making the investment. Talk to your equipment suppliers about real-world performance data from similar drilling operations, and don’t forget to factor in maintenance costs and operator training requirements. The best drive technology is the one that keeps your drill running efficiently while delivering the best return on your investment.
